Sewage Treatment Rectangular Sedimentation tank Sludge Scraper

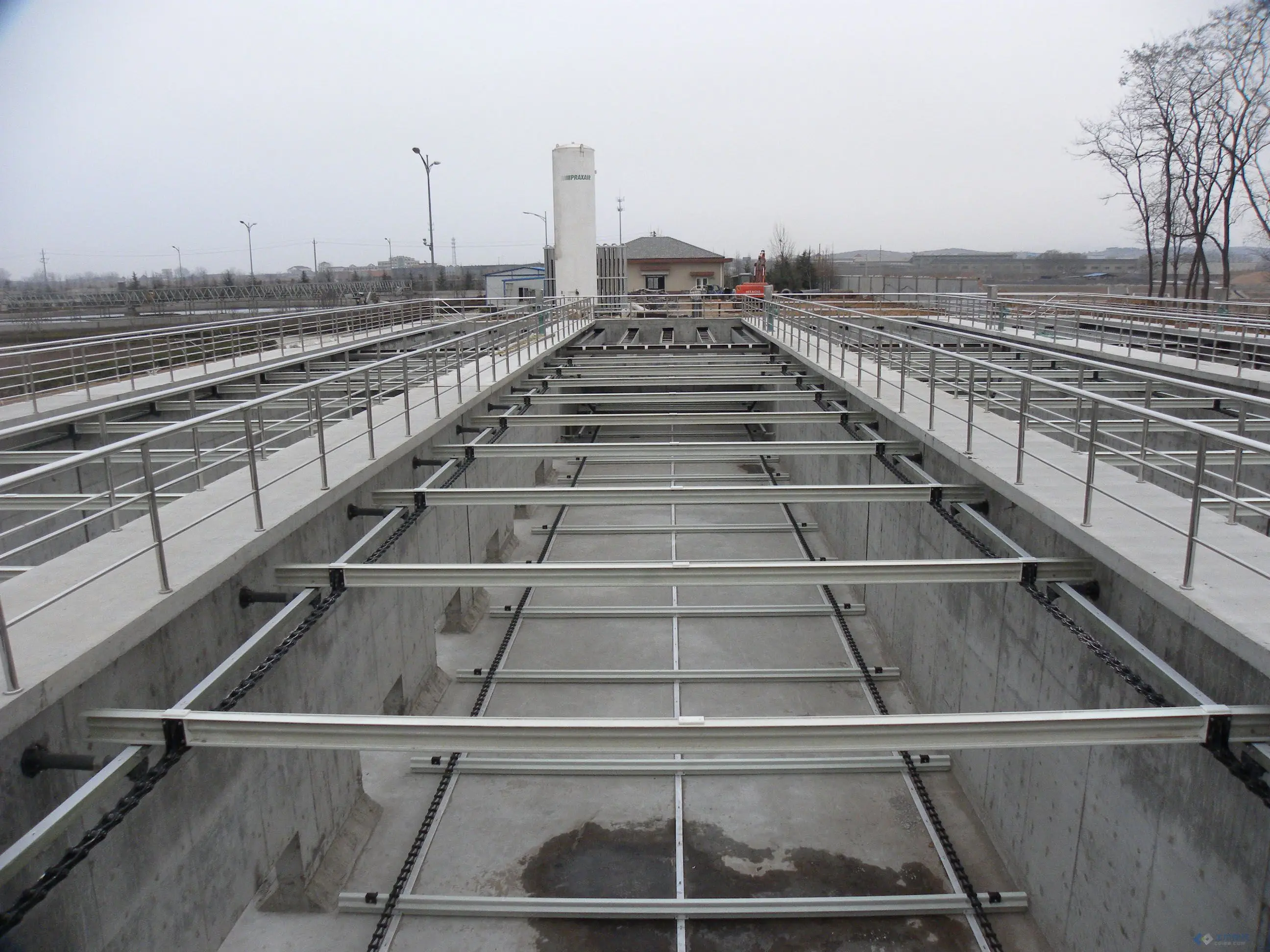

Rectangular sedimentation tank mud scraper water_treatment cleaning equipment. Scope of application The maximum width of the rectangular pool is 12 meters.Standard scraper is used for the width below 6.5m, and overstrength scraper is used for 8-12m.Transmission speed: 0.94r/min, walking speed: 0.46m/min.
Description
rectangular sedimentation tank mud scraper water_treatment cleaning equipment
Specification
Features are as follows:
1. good installation quality, easy maintenance, long service life,
2. Energy saving.The quality of plastic parts is easy to move, and the power consumption is small, generally 0.25-0.55kw,
3. The idler wheel (guide wheel) can be adjusted and calibrated.The length between the chains can also be adjusted according to the chain pitch,
4. plastic bottom rail scraper can prevent derailment, general small problems can be adjusted, big problems contact display
immediately stop.There are safety safety devices, and the signal feedback to the control room.
5. Low energy consumption and low operation cost.
Scope of application The maximum width of the rectangular pool is 12 meters.Standard scraper is used for the width below 6.5m, and overstrength scraper is used for 8-12m.Transmission speed: 0.94r/min, walking speed: 0.46m/min.
1. good installation quality, easy maintenance, long service life,
2. Energy saving.The quality of plastic parts is easy to move, and the power consumption is small, generally 0.25-0.55kw,
3. The idler wheel (guide wheel) can be adjusted and calibrated.The length between the chains can also be adjusted according to the chain pitch,
4. plastic bottom rail scraper can prevent derailment, general small problems can be adjusted, big problems contact display
immediately stop.There are safety safety devices, and the signal feedback to the control room.
5. Low energy consumption and low operation cost.
Scope of application The maximum width of the rectangular pool is 12 meters.Standard scraper is used for the width below 6.5m, and overstrength scraper is used for 8-12m.Transmission speed: 0.94r/min, walking speed: 0.46m/min.

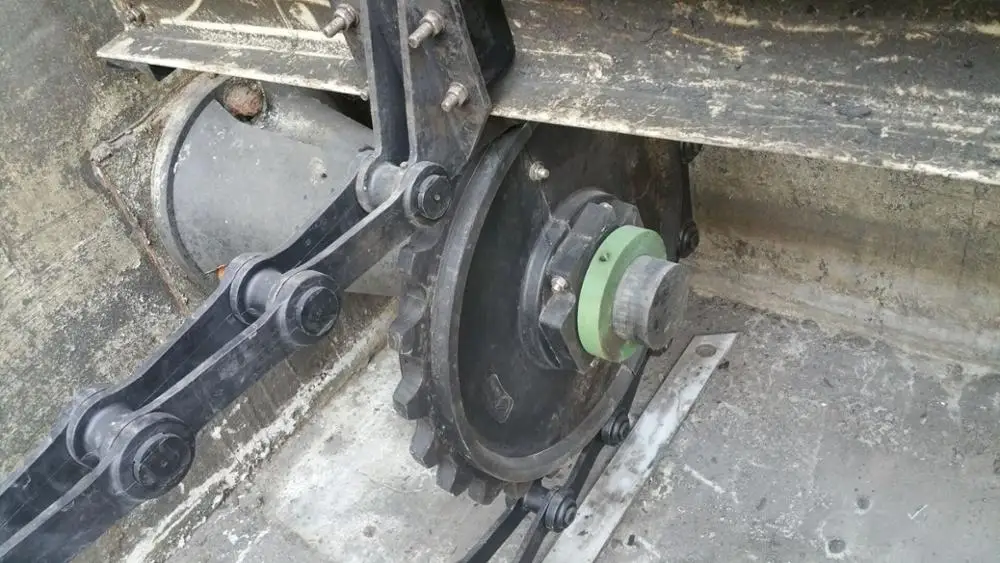

Advantages and composition of the non-metal mud scraper: the plastic chain system of the rectangular tank includes the following parts: |
1. Drive motor of gear box |
2, ncs-720-s (6-inch pitch) chain, |
3, glass fiber scraper (standard/high strength/super strength three), |
4, upper and lower wear boots, |

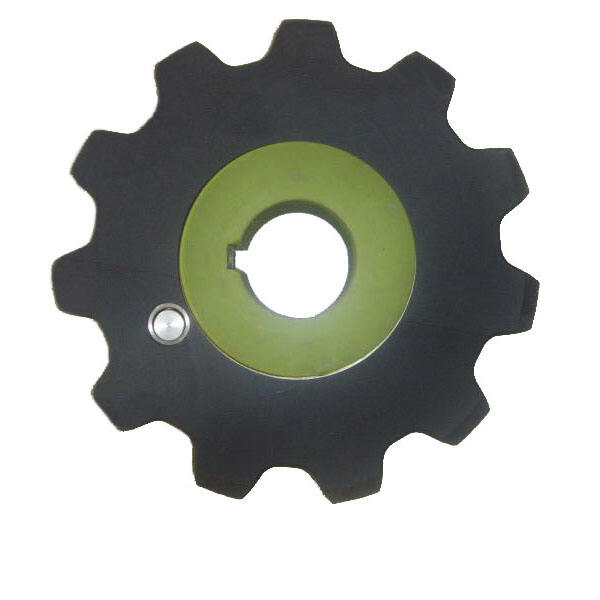

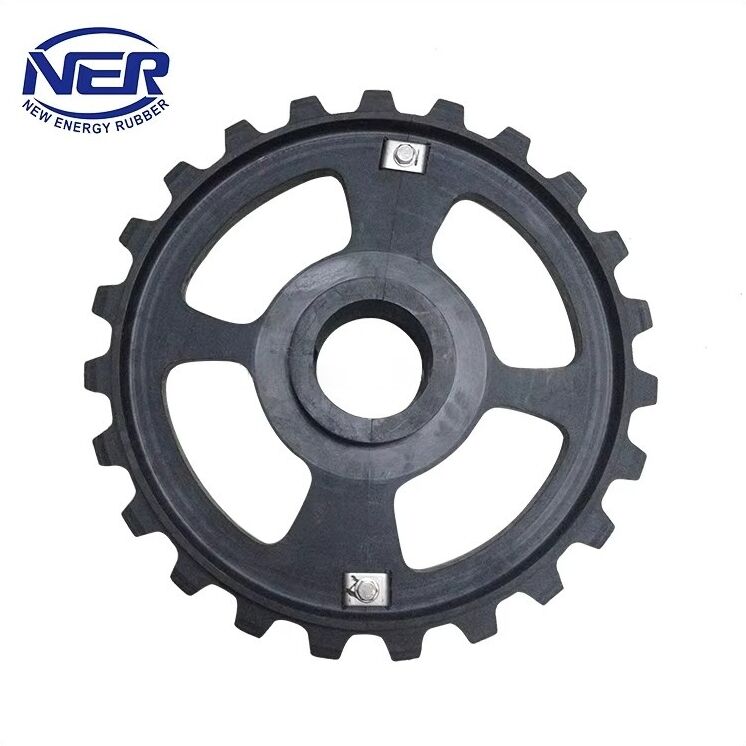

5, NER-720-S drive and idling sprocket, |
6, NER-NH-78 drive and drive master sprocket, |
7. High strength glass fiber reinforced plastic sleeve |
8. Pipe driving shaft |
9. Combination of idling and short shaft driving cast nylon, |
10. Replaceable self-lubricating sleeve bearing |
11. Glass fiber track and nylon 6 bracket |
12, high molecular polyethylene (uhmw-pe) track and ground wear strip. |
